CANGZHOU, HEBEI · COLD ROLL FORMING EQUIPMENT

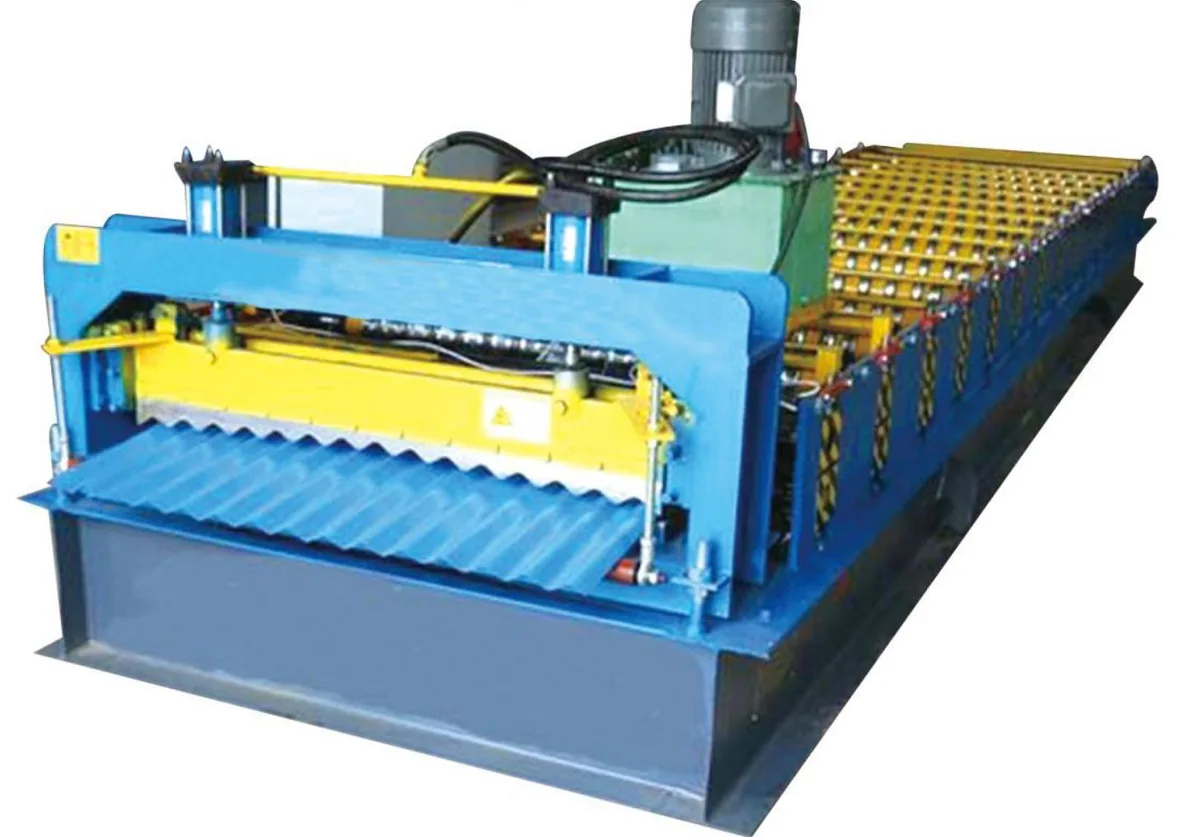

Custom Cold Roll Forming Engineering.
Built for Overseas Grids & Complex Profiles.
Start with your profile, material and destination workshop. Discuss electrical supply, forming requirements and applicable safety rules before agreeing the equipment scope.
WORKSHOP VIEWS / PROJECT DISCUSSION
Look at the details. Define your requirements.
Supplied photographs illustrate visible equipment arrangements. They do not establish a model, ownership, certified compliance or performance. Confirm the equipment and acceptance criteria in your project offer.
OVERSEAS OPERATIONAL ADAPTABILITY
Plan for Your Destination Workshop.
Agree the Interfaces Before Ordering.
Use these topics to prepare a project-specific specification. They are discussion requirements, not a statement that any pictured equipment includes these features.
| Engineering Challenge | Risk to discuss | Scope to confirm | Acceptance question |
|---|---|---|---|
| Power Grid & VoltageFrequency & phase matching | Failure Risk Incorrect voltage or frequency can affect operation. Provide the site electrical specification. | To confirm Confirm supply voltage, frequency, panel requirements and installation responsibilities in writing. | Who verifies the electrical interface before connection? |
| Steel Grade & SpringbackHigh yield & exotic coatings | Failure Risk Material strength and coating affect forming behavior. Identify the intended coil and its variation. | To confirm Agree profile limits, tooling review and trials using representative material. | How will sample geometry and coating condition be measured? |
| Safety & ComplianceMachine enclosure & safety circuits | Failure Risk Safeguards and documentation depend on the destination and machine scope. | To confirm Identify applicable rules, safeguard requirements and any third-party assessment needed. | Who reviews safety requirements and signs off acceptance? |
| Ocean Transit & RigiditySalt-spray & dynamic strain | Failure Risk Transport, lifting and workshop foundations need coordinated planning. | To confirm Agree lifting points, packing protection, transport dimensions and installation checks. | What checks are required after unloading and installation? |
| After-Sales & DiagnosticsCross-border uptime support | Failure Risk Unclear documentation and responsibilities can delay troubleshooting. | To confirm Agree documentation language, spare parts, support hours and any remote-access conditions. | What support scope and response arrangements are included? |
UNIVERSAL CUSTOM CAPABILITIES · FROM STRUCTURAL TO MICRO PROFILES
Universal Custom Profiles & Turnkey Lines.
Start with the Profile You Need.
The application families below help organize your inquiry. Material ranges, equipment configuration and feasibility must be confirmed against your drawing; these are not catalog ratings.
Heavy Structural Profiles
C/Z/U/Sigma purlins, heavy load-bearing columns, multi-hole AS/RS warehouse racking uprights, and closed deep-decking.
- Material: specify grade, coating and thickness range
- Changeover: describe required section sizes
- Operations: provide hole patterns and cutting requirements
- Layout: share floor space and handling constraints
Renewable & Energy Infrastructure
High-torsional-stiffness tracker brackets, flexible mounting channels, Zinc-Aluminum-Magnesium (ZAM) corrosion-resistant profiles, and heavy cable trays.
- Material: identify steel strength and coating
- Springback: state profile tolerance and trial needs
- Surface: agree coating inspection criteria
- Hole pattern: provide pitch and measurement points
Transportation & Highway Systems
Guardrail forming equipment (W-beam / thrie-beam), heavy truck chassis side rails, intermodal container floor crossmembers, and commercial vehicle frames.
- Material: specify strip grade and dimensions
- Drive and tooling: confirm against forming loads
- Punching: provide hole and slot geometry
- Compliance: identify product standards and independent testing requirements
Architectural Envelope & Cladding
Stepped architectural metal tiles, concealed snap-lock standing seam roofing, trapezoidal/corrugated wall & roof panels, and continuous sandwich panel lines.
- Material: confirm coating and thickness range
- Surface: agree visible finish acceptance criteria
- Output: define product lengths and full operating cycle
- Handling: discuss stacking and coil access requirements
Interior & Enclosure Profiles
Light gauge steel framing (LGS / stud & track), ceiling T-bars & furring channels, fireproof rolling shutter slats, and elevator hollow guide rails.
- Profile: supply bend radii and section dimensions
- Output: agree finished production targets and measurement conditions
- Operations: specify holes, dimples and cutting sequence
- Controls: confirm required functions in the offer
Non-Standard Profile Requirements
Have a proprietary cross-section or an existing overseas machine needing new tooling? We engineer custom roll tooling and full turnkey lines from your drawing.
- Drawing: agree revision and confidentiality terms before file sharing
- Forming review: confirm method and feasibility
- Tooling: agree material, finish and maintenance scope
- Acceptance: agree trial material, duration and records
CANGZHOU INDUSTRIAL BASE
Hebei Roll Forming Equipment.
Tooling Setup & Structured Frame Fabrication.
Prepare a project review covering profile geometry, tooling requirements and acceptance checks. Manufacturing methods and inspection scope must be confirmed for the proposed equipment.
Profile & Springback Requirements
Identify springback, edge wave and twist limits relevant to your material. Agree the review method and sample acceptance criteria before tooling.
Tooling & Alignment Requirements
Confirm tooling material, treatment, alignment checks and maintenance access in the technical offer. A workshop image alone does not verify these details.
Project-specific Acceptance Trial
Agree the trial material, duration, operating cycle, measurement plan and evidence required before shipment. Trial arrangements are subject to the order.
Specification Items to Confirm
Custom Project Brief & CAD Specifier
Configure your target profile, material grade, and overseas factory parameters. The selections describe your requested configuration, not confirmed machine capabilities. Feasibility, review deliverables and timing must be agreed per project.
FACTORY VERIFICATION FOOTAGE
Authentic Workshop Testing & Commissioning.
Review real workshop footage documenting multi-stand continuous roll forming, in-house CNC tooling machining, and trial run sample cut-off before packing.
Continuous multi-stand roll forming
Heavy-duty forming stands running structural steel with synchronized continuous drive stations.
12 seconds · Silent video · Factory trial runIn-house tooling CNC machining
Precision milling of forming rollers and structural tooling components inside the CNC center in Hebei.
08 seconds · Silent video · Factory toolingAutomated line commissioning
Continuous production line testing with synchronized drive stations and dual touchscreen HMI controls.
12 seconds · Silent video · Workshop commissioningIn-line cut-off & sample check
Roll forming trial with in-line hydraulic cut-off and finished sample discharge inspection for tolerances agreed in your project.
12 seconds · Silent video · Inspection sequenceYour next production line
Start with the product you want to make.
Send your drawing, material, finished output target and destination. Build the equipment, inspection and delivery scope into one project brief.
