QUALITY STANDARDS / PROJECT SPECIFICATION
Use this page to prepare electrical and mechanical topics for the order file. References such as EN 60204-1 or a North American 480V 3-phase supply describe what the buyer may require. This website does not present third-party certificate scans or listing marks, and it does not claim that pictured equipment already carries destination marks.
WORKSHOP VIEWS / PROJECT DISCUSSION

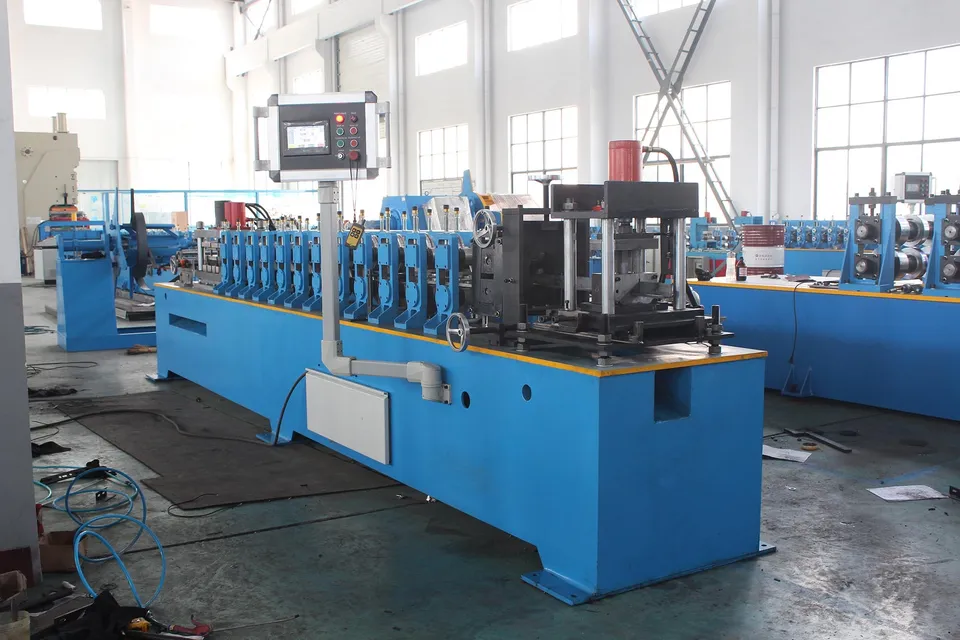

Control-panel and line-layout photograph for discussion only. It is not a certificate, nameplate, listing mark or inspection report.
HOW TO READ THIS PAGE
Public pages can list questions. The signed offer records what will actually be supplied, who assesses it, and which documents travel with the machine. If a buyer needs a third-party assessment, that scope, laboratory and cost belong in the contract — not in a website gallery.
Share site voltage, frequency, phase, available current, earthing practice and who connects the cabinet. European projects often raise EN 60204-1 as an electrical-equipment discussion item (emergency stop, isolation, marking of devices, documentation language). Naming that document here does not mean a certificate is on file for public download.
Many North American plants specify 480V 3-phase industrial supply, with frequency and feeder details confirmed by the buyer’s electrician. Panel construction, listing or field evaluation — if required — are buyer-specified contract items. This site does not claim a listed cabinet or a held certificate.
Guarding, interlocks, access for threading and cutoff, lifting points and noise or layout constraints depend on the machine scope and the destination. Identify the rules that apply at the plant. Do not treat a workshop photograph as evidence that a particular directive has already been assessed.
No certificate gallery, no implied management-system registration, and no statement that equipment is already marked for a destination. If the owner later supplies authentic documents, they can be added as reviewed assets. Until then, keep claims inside the contract file.
SPECIFICATION CHECKLIST
| Topic | What to send |
|---|---|
| Supply | Voltage, frequency, phase, available capacity and any transformer or generator notes. |
| Cabinet & controls | Language of the HMI, preferred device brands if the buyer has a standard, and whether a particular electrical document (for example EN 60204-1) should be used as a discussion baseline. |
| Safeguards | Required guarding, emergency-stop locations, access gates and lock-out practice at the destination plant. |
| Assessment | Whether the buyer will arrange third-party inspection, and at which milestone (workshop trial, before packing, or after installation). |
| Documents | Language of manuals, electrical drawings, and who stores signed acceptance records. |
Electrical and safeguard checks sit in step 04 of the seven-step factory-acceptance discussion protocol. Records and sign-off are step 07. Agree methods before travel or video attendance.
Remote guidance, any on-site dispatch and wear-part classes are described on Services. Support hours and spare-part lists are order-specific.
Terms of Sale explain that warranty duration and remedies are not published as a site-wide figure. Quality discussion does not create a warranty by itself.
A profile drawing, material note and destination electrical sheet are more useful than asking this website to display certificates it does not have. Prepare a technical brief.
